Grease Fitting

  • Grease Fitting
Specification
  • A: Str.
  • B: 30°
  • C: 45°
  • D: 65°
  • E: 90°
Package
  • Bulk Packing: 100 PCS / BOX
Inquiry Prev Back
    • Product Description
    Metric Fitting
    No. Item No. Description
    (Thread)    		 Angle
    (Type)    		 A
    (mm)    		 B
    (mm)    		 C
    (mm)    		 PCS
    /neweng/ Inner Box
    1 NM6075A M6 X 0.75 Str. 14 5 7 100
    2 NM6075C M6 X 0.75 45° 23 5.5 8 100
    3 NM6075E M6 X 0.75 90° 18.5 5.5 9 100
    4 NM610A M6 X 1.0 Str. 14 5 7 100
    5 NM610C M6 X 1.0 45° 23 5.5 8 100
    6 NM610E M6 X 1.0 90° 18.5 5.5 9 100
    7 NM810A M8 X 1.0 Str. 16 6 9 100
    8 NM810A-1 M8 X 1.0 Str. 17 6 10 100
    9 NM810C M8 X 1.0 45° 24 6 9 100
    10 NM810C-1 M8 X 1.0 45° 24 6 10 100
    11 NM810E M8 X 1.0 90° 20 6 9 100
    12 NM810E-1 M8 X 1.0 90° 20 6 10 100
    13 NM8125A M8 X 1.25 Str. 16 6 9 100
    14 NM8125A-1 M8 X 1.25 Str. 17 6 10 100
    15 NM8125C M8 X 1.25 45° 24 6 9 100
    16 NM8125C-1 M8 X 1.25 45° 24 6 10 100
    17 NM8125E M8 X 1.25 90° 20 6 9 100
    18 NM8125E-1 M8 X 1.25 90° 20 6 10 100
    19 NM1010A M10 X 1.0 Str. 17.5 6.5 11 100
    20 NM1010C M10 X 1.0 45° 25 7 11 100
    21 NM1010E M10 X 1.0 90° 20 7 11 100
    22 NM10125A M10 X 1.25 Str. 17.5 6.5 11 100
    23 NM10125C M10 X 1.25 45° 25 7 11 100
    24 NM10125E M10 X 1.25 90° 20 7 11 100
    25 NM1015A M10 X 1.5 Str. 17.5 6.5 11 100
    26 NM1015C M10 X 1.5 45° 25 7 11 100
    27 NM1015E M10 X 1.5 90° 20 7 11 100
    28 NM12125A M12 X 1.25 Str. 20 7 14 100
    29 NM12125C M12 X 1.25 45° 25 7.5 14 100
    30 NM12125E M12 X 1.25 90° 22 7.5 14 100
    31 NM1215A M12 X 1.5 Str. 20 7 14 100
    32 NM1215C M12 X 1.5 45° 25 7.5 14 100
    33 NM1215E M12 X 1.5 90° 22 7.5 14 100
    34 NM12175A M12 X 1.75 Str. 20 7 14 100
    35 NM12175C M12 X 1.75 45° 25 7.5 14 100
    36 NM12175E M12 X 1.75 90° 22 7.5 14 100

    NPT Fitting
    No. Item No. Description
    (Thread)    		 Angle
    (Type)    		 A
    (mm)    		 B
    (mm)    		 C
    (mm)    		 PCS
    /neweng/ Inner Box
    1 N8127A 1/8"-27 Str. 17.5 7 11 100
    2 N8127A-1 1/8"-27 Str. 32 19.5 11 100
    3 N8127A-2 1/8"-27 Str. 45 32.5 11 100
    4 N8127-3 1/8"-27 Str. 66.5 55 11 100
    5 N8127-4 1/8"-27 Str. 16.5 6 11 100
    6 N8127-5 1/8"-27 Str. 23 9 11 100
    7 N8127B 1/8"-27 30° 23 8 11 100
    8 N8127B-1 1/8"-27 30° 53 32 11 100
    9 N8127B-2 1/8"-27 30° 22 5 11 100
    10 N8127C 1/8"-27 45° 22.5 7.5 11 100
    11 N8127C-1 1/8"-27 45° 25 9 11 100
    12 N8127D 1/8"-27 65° 22 7.5 11 100
    13 N8127D-1 1/8"-27 65° 30 14 11 100
    14 N8127D-2 1/8"-27 65° 20 5 11 100
    15 N8127E 1/8"-27 90° 21 7.5 11 100
    16 N8127E-1 1/8"-27 90° 46 32 11 100
    17 N8127E-2 1/8"-27 90° 19.5 5.5 11 100
    18 N8127E-3 1/8"-27 90° 23 9 11 100
    19 N4118A 1/4"-18 Str. 20 8 14 50
    20 N4118B 1/4"-18 30° 25 8 14 50
    21 N4118C 1/4"-18 45° 26 8 14 50
    22 N4118D 1/4"-18 65° 25 8 14 50
    23 N4118E 1/4"-18 90° 23 8 14 50

    BSP Fitting
    No. Item No. Description
    (Thread)    		 Angle
    (Type)    		 A
    (mm)    		 B
    (mm)    		 C
    (mm)    		 PCS
    /neweng/ Inner Box
    1 N8128A 1/8"-28 Str. 17 6.5 10 100
    2 N8128A-1 1/8"-28 Str. 13.5 4 10 100
    3 N8128A-2 1/8"-28 Str. 20 8.5 10 100
    4 N8128B 1/8"-28 30° 23 7 10 100
    5 N8128C 1/8"-28 45° 25 7 10 100
    6 N8128C-1 1/8"-28 45° 27 8.5 10 100
    7 N8128D 1/8"-28 65° 23 7 10 100
    8 N8128E 1/8"-28 90° 21 7 10 100
    9 N8128E-1 1/8"-28 90° 22.5 8.5 10 100
    10 N4119A 1/4"-19 Str. 21 8.5 14 100
    11 N4119B 1/4"-19 30° 25 8 14 50
    12 N4119C 1/4"-19 45° 26 8 14 50
    13 N4119D 1/4"-19 65° 25 8 14 50
    14 N4119E 1/4"-19 90° 22 8 14 50

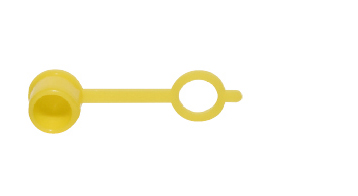

    Item No. Package PCS / Polybag PCS / Carton
    A-NCAP Bulk 100 5000
